打膠機的主要技術參數以及結構原理
雙組份打膠機是專門對流體進行控制，并將流體點滴、涂覆于產品表面或產品內部的自動化機器。下面來講講
濟南雙組份打膠機的主要技術參數以及結構原理。
The two-component sealant dispenser is an automatic machine that controls the fluid and drips and coats the fluid on the surface or inside of the product. Now let's talk about the main technical parameters and structural principles of the two-component sealant dispenser in Jinan.
雙組份打膠機是集國內外較技術生產的中空玻璃密封膠打膠機，A組分泵和B組分泵膠分別采用系統驅動，采用無觸點電器控制系統控制，換向靈敏可靠，其獨特的方便可調試配比機構，較大限度地保證雙組份膠近乎苛刻的配比要求，出膠連續均勻，涂膠效果好，生產效率高。
The two-component sealant applicator is a sealant applicator for insulating glass sealant produced with relatively high technology at home and abroad. The component A pump and component B pump are respectively driven by the system, controlled by the contactless electrical control system, with sensitive and reliable commutation. Its unique and convenient mixing mechanism can be debugged, which can largely ensure the strict matching requirements of two-component sealant. The sealant is continuously and evenly discharged, with good coating effect and high production efficiency.
主要技術參數：
Main technical parameters:
型號：GT04
Model: GT04
混合比：6:1-14:1
Mixing ratio: 6:1-14:1
基料桶：55加侖（20L)
Base barrel: 55 gallons (20L)
較大耗氣：0.5立方米
Large gas consumption: 0.5m3
擠膠較大工作壓力：20Mpa
Large working pressure of extrusion: 20Mpa
供氣壓力：0.5-0.8Mpa
Air supply pressure: 0.5-0.8Mpa
外形尺寸：1100*950*2500mm
Boundary dimension: 1100 * 950 * 2500mm
雙組份打膠機的結構原理:
Structure and principle of two-component sealant dispenser:

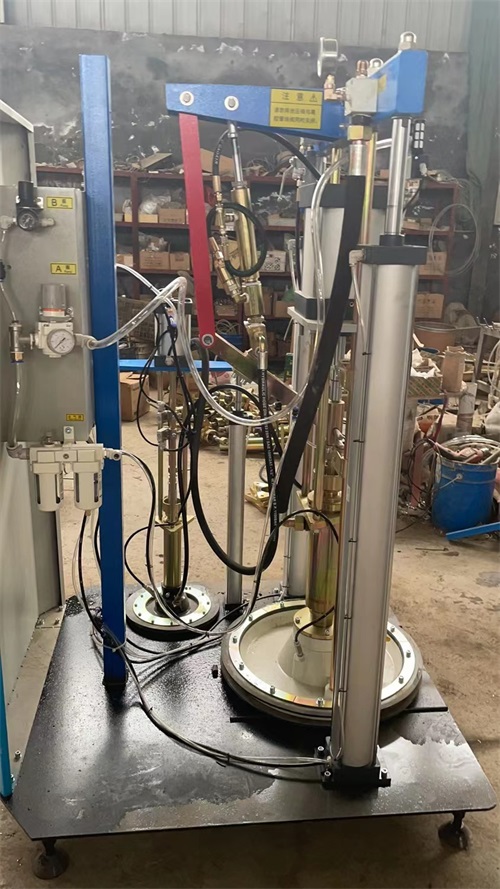

雙組份涂膠機由A、B膠泵、系統、升降機構、機架等組成?，F(xiàn)分別介紹如下：
The two-component gluing machine is composed of A and B glue pumps, systems, lifting mechanisms, racks, etc. Here are the following:
1.膠泵：
1. Glue pump:
（1）A、B組份各設一個膠泵，在各自的氣馬達驅動下，分別作往復運動，將膠吸入并壓出。A、B膠泵分別與壓膠盤固定在一起，再與機架連接組成各自的系統。
(1) Each component A and B is equipped with a rubber pump, which is driven by its own air motor to perform reciprocating motion to suck in and press out the rubber. A. The rubber pump B is respectively fixed with the rubber pressing plate, and then connected with the frame to form their own systems.
（2）A、B組份的配比是通過比例杠桿進行調節：向里調節，B出膠量減少，向外調節，B出膠量增加。通過調節比例杠桿來控制B膠的出膠量，從而控制A、B膠的配比。
(2) The proportion of components A and B is adjusted through the proportional lever: inward adjustment, B glue output decreases, outward adjustment, B glue output increases. The glue output of glue B is controlled by adjusting the proportional lever, so as to control the ratio of glue A and glue B.
（3）出膠量：由氣源處理器控制，逆時針調節，出膠量增加，順時針調節出膠量減小。（這里指總出膠量）
(3) Glue output: It is controlled by the air source processor and adjusted counterclockwise to increase the glue output and clockwise to decrease it. (This refers to the total glue output)
2 . 升降機構：
2. Lifting mechanism:
A、B組份膠泵分別設一套升降機構，該升降機構分別由兩個氣缸并聯組成，并通過橫梁固定連接各自的泵體。其目的之一是將兩缸的作用力通過壓盤作用在膠面上，壓力大小由調壓閥調節，一般調整在0.3MPa左右；
A. The rubber pump of component B is respectively equipped with a set of lifting mechanism, which is composed of two cylinders in parallel, and is fixedly connected with each pump body through the beam. One of its purposes is to apply the force of the two cylinders on the rubber surface through the pressure plate, and the pressure is regulated by the pressure regulating valve, which is generally adjusted at about 0.3MPa;
其二，當需要更換膠桶時，氣缸可將壓盤提起。離開膠桶，以便更變新的膠桶。
Second, when the rubber bucket needs to be replaced, the cylinder can lift the pressure plate. Leave the glue bucket to change it into a new one.
The main technical parameters and structural principles of the glue dispenser are explained here. You can come to our website at any time if you have any needs http://www.sunflowder5188.com.cn consulting service
